Widths
Thin blocks for accurate coursing and consistent masonry alignment

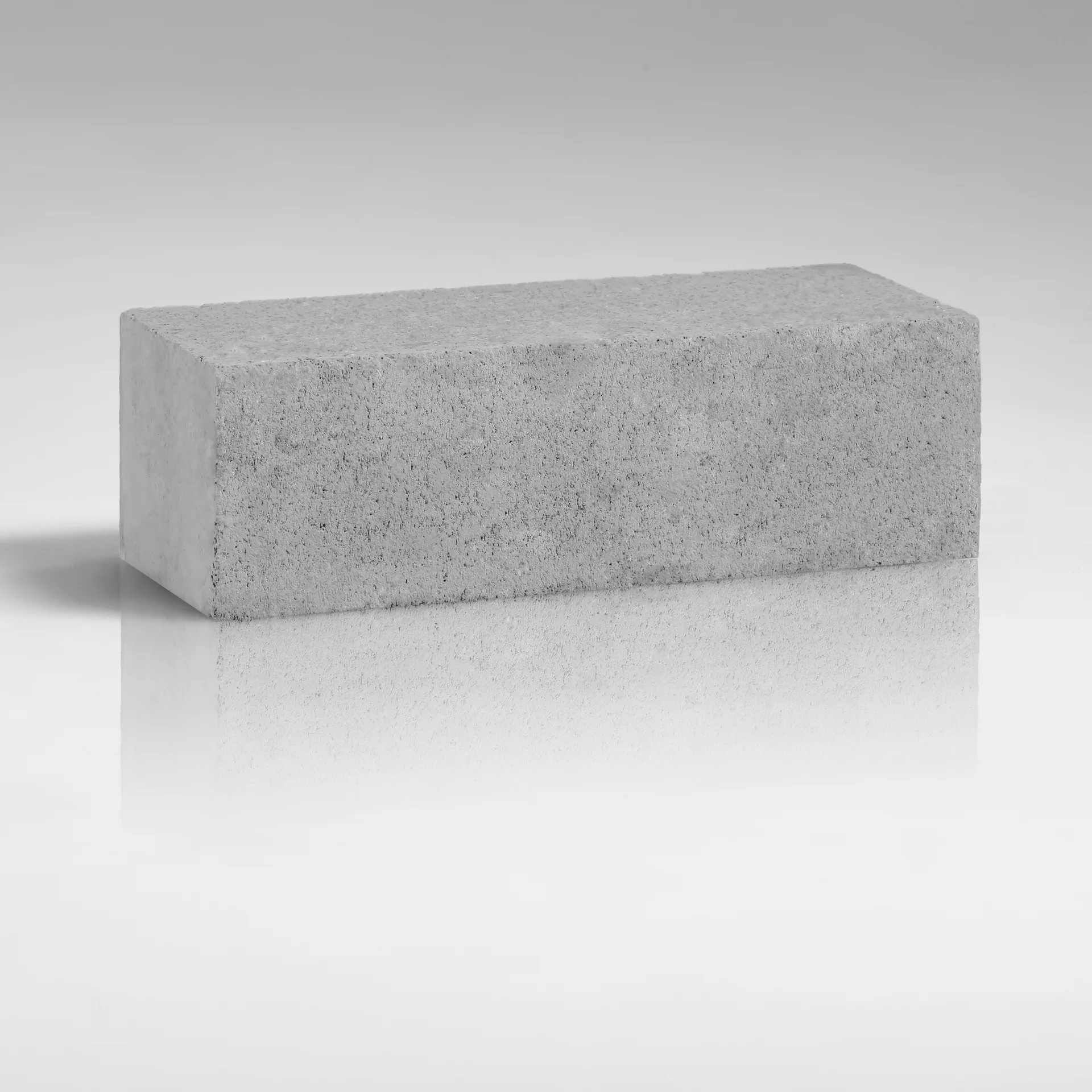

Celcon Blocks: Coursing Units
Coursing Unit sizes and specifications
Grade
Widths
Strength
Conductivity
Density
Weight
Standard
100mm
3.6N/mm²
0.15 W/mK
600 kg/m³
1.1kg
Standard
140mm
3.6N/mm²
0.15 W/mK
600 kg/m³
1.5kg
Standard
150mm
3.6N/mm²
0.15 W/mK
600 kg/m³
1.6kg
High Strength
100mm
7.3N/mm²
0.18 W/mK
730 kg/m³
1.5kg
High Strength
140mm
7.3N/mm²
0.18 W/mK
730 kg/m³
2.0kg
High Strength
150mm
7.3N/mm²
0.18 W/mK
730 kg/m³
2.1kg
Super Strength
100mm
8.7N/mm²
0.18 W/mK
730 kg/m³
1.5kg
Super Strength
140mm
8.7N/mm²
0.18 W/mK
730 kg/m³
2.0kg
Super Strength
150mm
8.7N/mm²
0.18 W/mK
730 kg/m³
2.1kg
Load-bearing walls should not be constructed of Coursing Units as the only masonry unit.
Where to use Coursing Units
Product Availability
Disclaimer
The information on this website is provided for general guidance only and does not reflect current product availability or stock levels. For up-to-date stock information or specific product requirements, please contact our Customer Services or Technical teams.
