Widths
Large-format blocks for faster construction

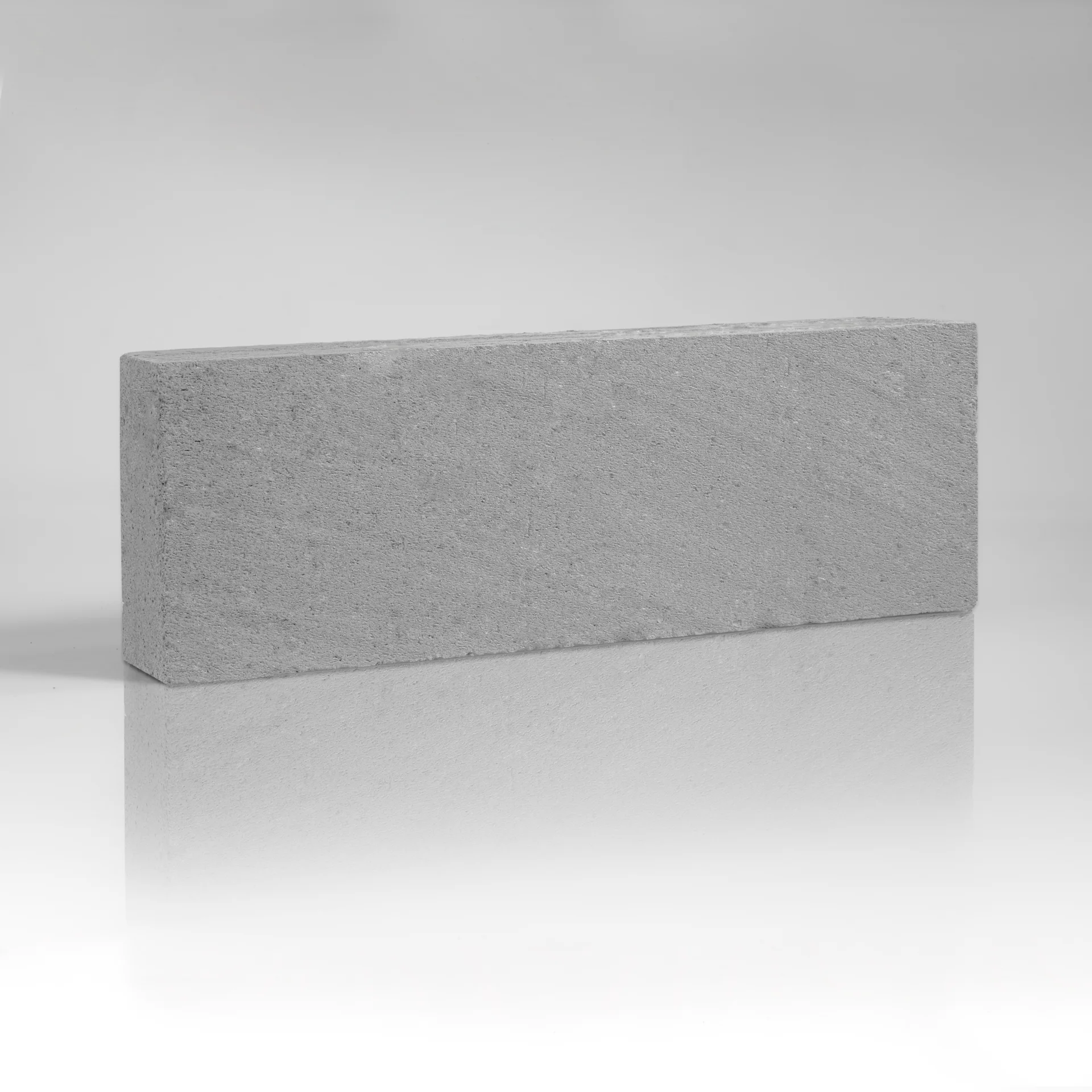

Celcon Blocks: Plus Blocks
Plus Block sizes and specifications
Grade
Widths
Strength
Conductivity
Density
Weight
Solar
100mm
2.9N/mm²
0.11W/mK
460kg/m³
8kg
Solar
140mm
2.9N/mm²
0.11W/mK
460kg/m³
11kg
Solar
150mm
2.9N/mm²
0.11W/mK
460kg/m³
12kg
Solar
200mm
2.9N/mm²
0.11W/mK
460kg/m³
16kg
Solar
215mm
2.9N/mm²
0.11W/mK
460kg/m³
17kg
Standard
100mm
3.6N/mm²
0.15W/mK
600kg/m³
10kg
Standard
140mm
3.6N/mm²
0.15W/mK
600kg/m³
14kg
Standard
150mm
3.6N/mm²
0.15W/mK
600kg/m³
15kg
Standard
200mm
3.6N/mm²
0.15W/mK
600kg/m³
20kg
High Strength
100mm
7.3N/mm²
0.18W/mK
730kg/m³
12kg
High Strength
140mm
7.3N/mm²
0.18W/mK
730kg/m³
17kg
High Strength
150mm
7.3N/mm²
0.18W/mK
730kg/m³
18kg
High Strength
200mm
7.3N/mm²
0.18W/mK
730kg/m³
24kg
Super Strength
100mm
8.7N/mm²
0.18W/mK
730kg/m³
12kg
Super Strength
140mm
8.7N/mm²
0.18W/mK
730kg/m³
17kg
Super Strength
150mm
8.7N/mm²
0.18W/mK
730kg/m³
18kg
Super Strength
200mm
8.7N/mm²
0.18W/mK
730kg/m³
24kg
Block weights at typical moisture content when laid. Some manufacturers may quote weights which have not allowed for this.
Where to use Plus Blocks
